Aux Input Stereo? Left Channel Only!

[billybovine]

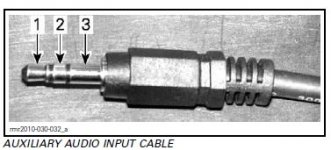

1 = pin A
2 = pin C
3 = pin B

The picture is the trunk socket. The cable end will be a mirror image.



[IdahoMtnSpyder]

1 = pin A
2 = pin C
3 = pin B

The picture is the truck socket. The cable end will be a mirror image.

View attachment 141924View attachment 141925

Where did you find these pics? They aren't in the service manual that I can find. Technicians training manual, or something of the sort?



[billybovine]

Where did you find these pics? They aren't in the service manual that I can find. Technicians training manual, or something of the sort?

.
2013 Service Manual - Electrical System - Lights, Gauge and Accessories - Auxiliary Audio In Jack.



[IdahoMtnSpyder]

.
2013 Service Manual - Electrical System - Lights, Gauge and Accessories - Auxiliary Audio In Jack.

Interesting. I have both the 2013 and 2014 manuals. The Lights, Gauges, and Accessories section in the 2013 manual is 78 pages. In the 2014 manual it's 27 pages. No wonder I couldn't find it since I was looking in the 2014 manual. Now, if I had searched the 2013 manual ........



[missouriboy]

I Have Stereo!

billybovine's post confirms the pin mismatch between my Amazon cord and the RT socket.

So I bought a BRP cord and now have fine stereo output! They told me if I can find my original cord, to bring it in for a refund. :sour:

The TAKEAWAY from this thread: Don't waste your money on any cord but the OEM from BRP. Joel The Biker had the answer! :thumbup:

Thanks everybody. Over & Out...
