How to and where to access rear suspension adjustment?

[seagravesg]

Adjustment for rear suspension on 2020 F3-T?



[arachnyd]

Adjustment for rear suspension on 2020 F3-T?

on my 2019 F3T there is a schrader valve under the passenger seat.

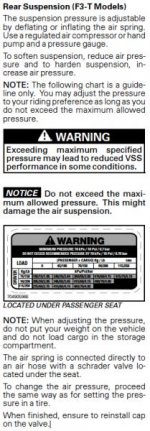

here is what is in my manual



ba



[seagravesg]

Thanks. My manual is the same but I didn't know which seat. BTW, my 2020 is exactly the same color, Liquid Titanium...I love it. Also, have you added accessories? Able to put some miles on it?
I added a 'tall boy' w/s and driver backrest at time of purchase.



[arachnyd]

Thanks. My manual is the same but I didn't know which seat. BTW, my 2020 is exactly the same color, Liquid Titanium...I love it. Also, have you added accessories? Able to put some miles on it?
I added a 'tall boy' w/s and driver backrest at time of purchase.

i bought mine last August. so far only 1500 miles. Half of that a camping trip to Lake of the Woods by the Northwest Angle. Long days riding are quite comfortable. About the same as the Goldwing the F3 replaced.
All i did last year was an F4 Customs windshield, some chemicals guys wash and detailer and a service manual. i have a few things on deck once the weather warms. Fog lights, Tackform mount, rear rack, brake rod and Fobo (which i have started).

enjoy your ride,
ba



[pieman9155]

i have the same color bike .i run 10lbs air



[Apple2020]

Does anyone have a pic where the schrader valve is underneath the seat I can’t find it for nothing. I also have the same color F3t



[Peteoz]

This is where it is on my 2016F3-L. Bugger....I can’t find the photo....That is obviously the wrong one... those thumbnails are soooo small. have to look later...sorry
Here it is. The valve is top centre , with the silver FOBO cap on it.

Pete



[arachnyd]

Does anyone have a pic where the schrader valve is underneath the seat I can’t find it for nothing. I also have the same color F3t

this is on my 2019 T
i have a Fobo connected to it.
