Help who has had this problem
- Thread starter RudyB
- Start date
spyderCodes
Member
Check your battery connections, the DPS consumes the bulk of the electrical power used by the Spyder.
billybovine
Active member
Press Mode, Set and Turn Cancel buttons. All at the same time. Tell us what codes come up.
Roadster Renovations
New member
Spyder Diagnostic Codes - P0562
System voltage Low
Alternator defective
or not connected
Battery failure; an
external battery charger
may have been used.
Damaged circuit wires or
connection.
Measure battery voltage with
engine stopped (expected
value: 11 to 13 volts).
Measure battery voltage with
engine running (expected
value: 13 to 14.7 volts).
Check connections
on voltage regulator.
Check ground and positive
connections on battery.
Check ground on vehicle frame.
System voltage Low
Alternator defective
or not connected
Battery failure; an
external battery charger
may have been used.
Damaged circuit wires or
connection.
Measure battery voltage with
engine stopped (expected
value: 11 to 13 volts).
Measure battery voltage with
engine running (expected
value: 13 to 14.7 volts).
Check connections
on voltage regulator.
Check ground and positive
connections on battery.
Check ground on vehicle frame.
spyderCodes
Member

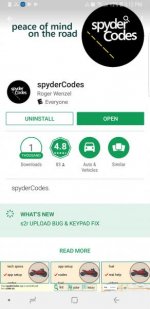

You may want to download the free app spyderCodes, available at the Play Store or App Store.
P0562
Can anyone clarify, why connecting and external battery charger could cause this code?
(Battery failure; an
external battery charger
may have been used.
Two days ago I hooked up my battery tender. This morning, I disconnected it ( it has the quick plug and go type connector) and started the bike. The check engine light came on and I got the handle bar warning light. Checked and got the P0562 code. I checked voltage not running and it is 12.86. Running it is 14.26. Perfect I would say. I shut it off, restart and all is fine for about a minute, then it comes on again. Tried disconnecting battery for a bit, that didn't help. Any ideas? Thanks guys. Enjoy reading this forum. The operators manual covers charging, replacing and boosting, but no mention it will start throwing codes.
Can anyone clarify, why connecting and external battery charger could cause this code?
(Battery failure; an
external battery charger
may have been used.
Two days ago I hooked up my battery tender. This morning, I disconnected it ( it has the quick plug and go type connector) and started the bike. The check engine light came on and I got the handle bar warning light. Checked and got the P0562 code. I checked voltage not running and it is 12.86. Running it is 14.26. Perfect I would say. I shut it off, restart and all is fine for about a minute, then it comes on again. Tried disconnecting battery for a bit, that didn't help. Any ideas? Thanks guys. Enjoy reading this forum. The operators manual covers charging, replacing and boosting, but no mention it will start throwing codes.
Last edited:
rocketman74
New member

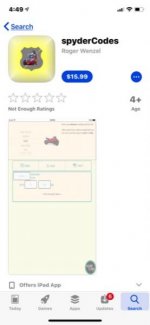

Sounds useful, but the app shows as $15.99 in the Apple App Store. Is this correct?
Shadowkast
New member
rocketman74
New member
SpyderCodes now costs for Apple phones, but atm is still free for Android phones...
But we have been told that the next upgrade means it will cost for Android phones too! :sour: However, that doesn't take away from the fact that it'll still be Cheap at twice the price! :2thumbs: It is a very useful & handy app that can save you a lot of worry & dollars! :thumbup:
But we have been told that the next upgrade means it will cost for Android phones too! :sour: However, that doesn't take away from the fact that it'll still be Cheap at twice the price! :2thumbs: It is a very useful & handy app that can save you a lot of worry & dollars! :thumbup:
